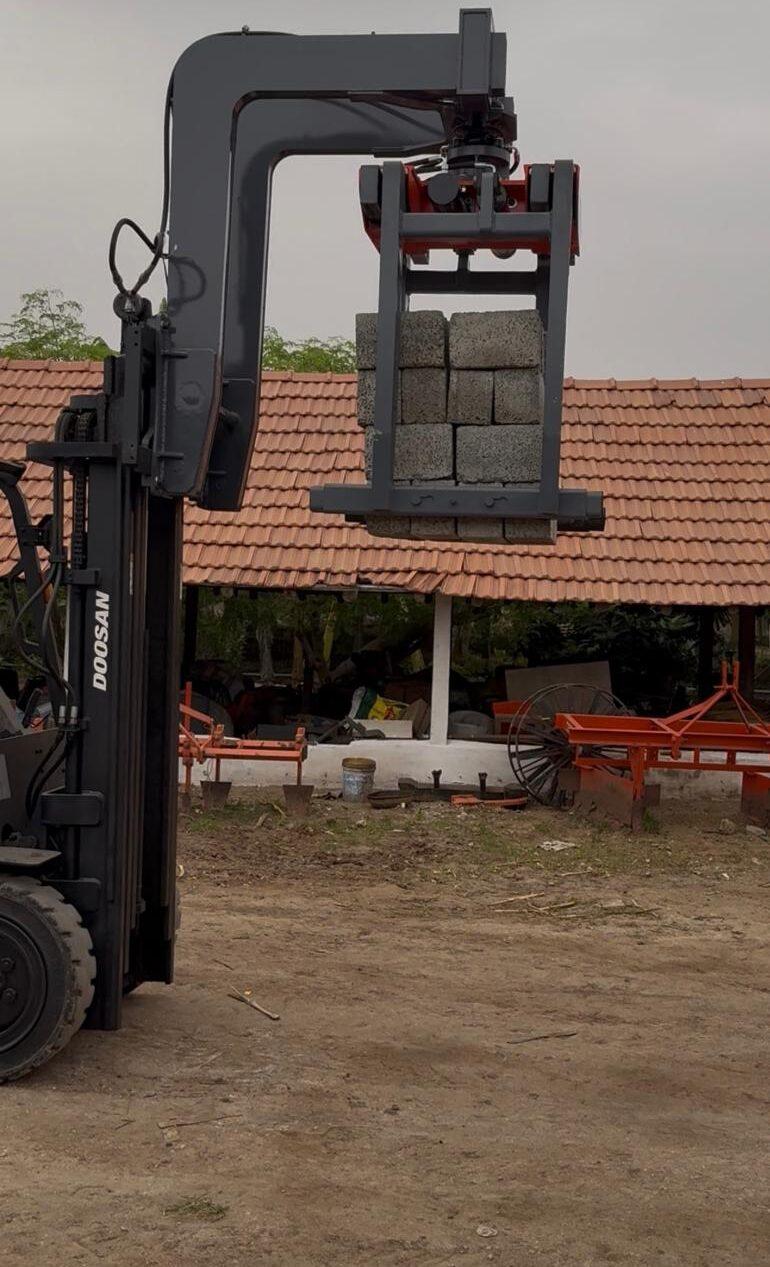

SAE 02 high-lift brick grabber lifting a stack of blocks

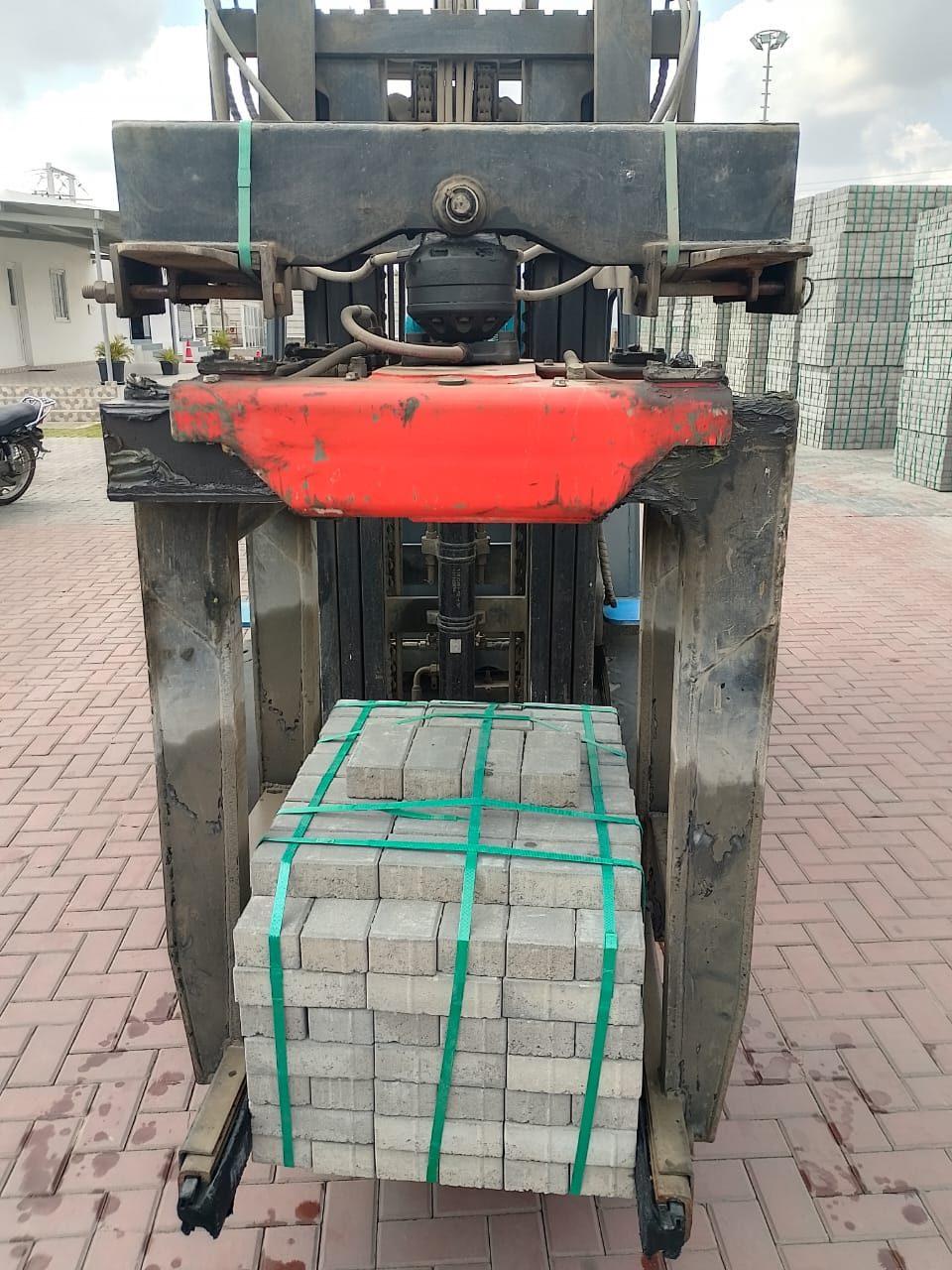

SAE 02 brick grabber holding strapped pavers on a forklift

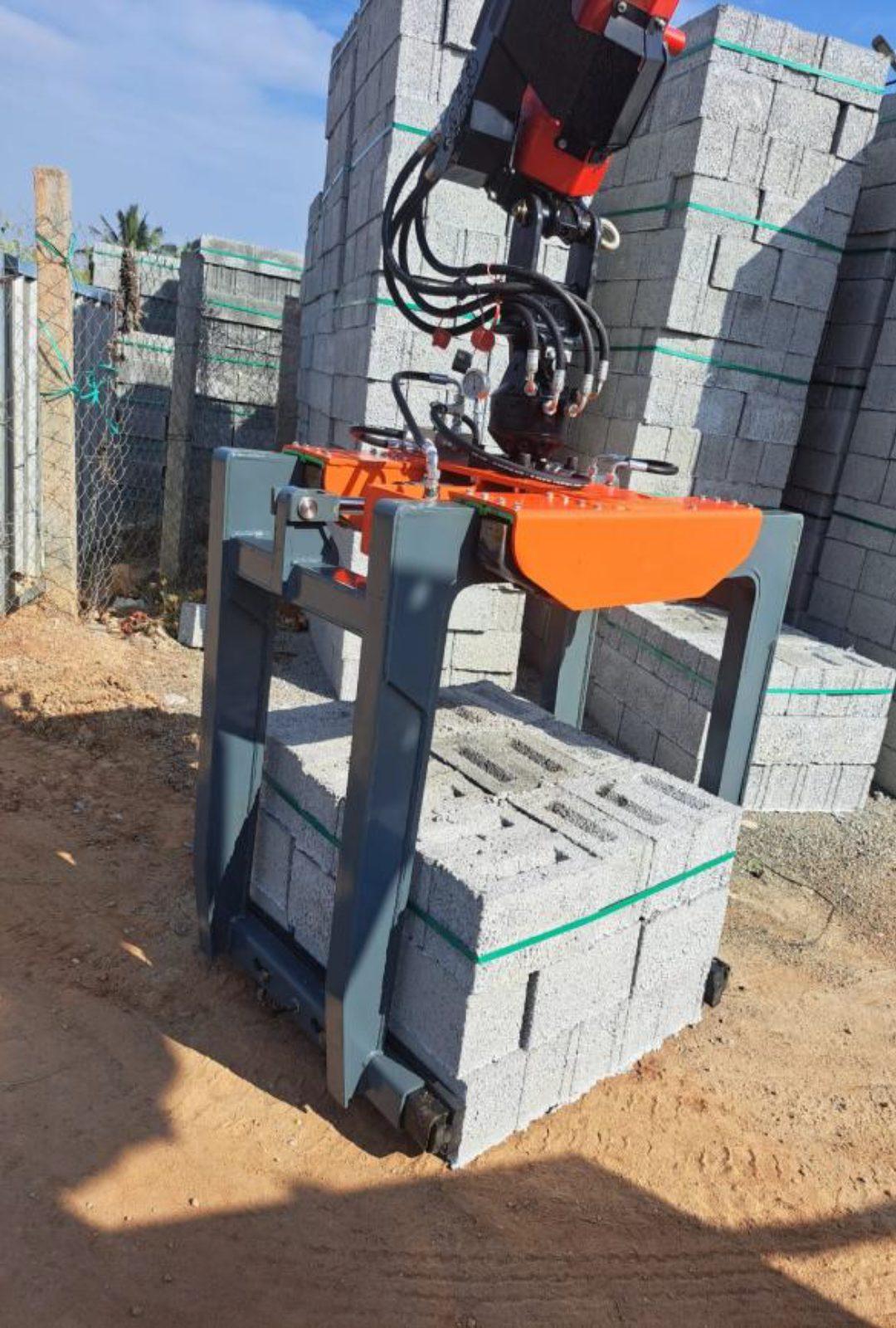

SAE 02 high-lift brick grabber on a forklift at a block yard

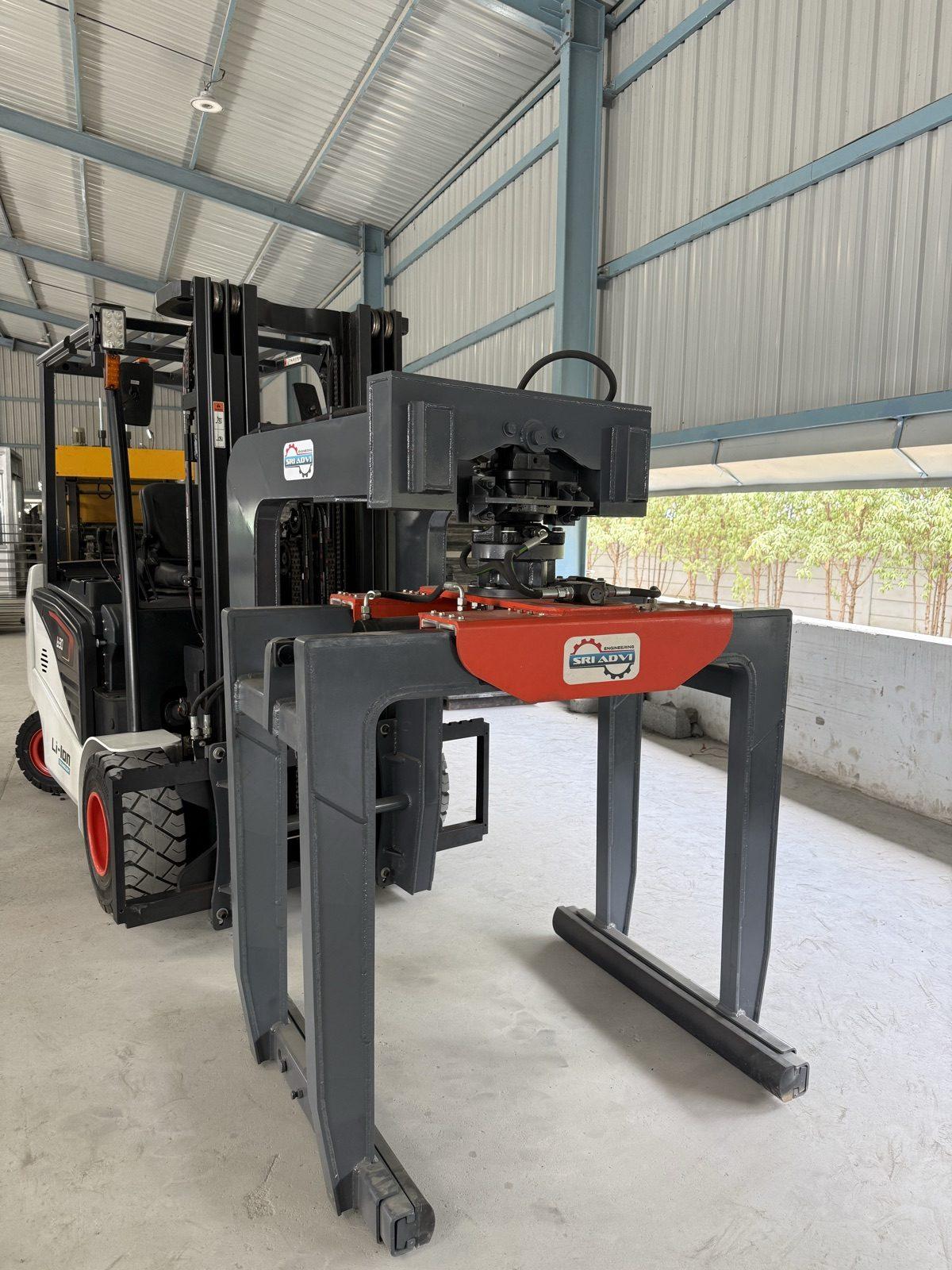

SAE 02 high-lift brick grabber with its orange rotator, on a forklift in the workshop

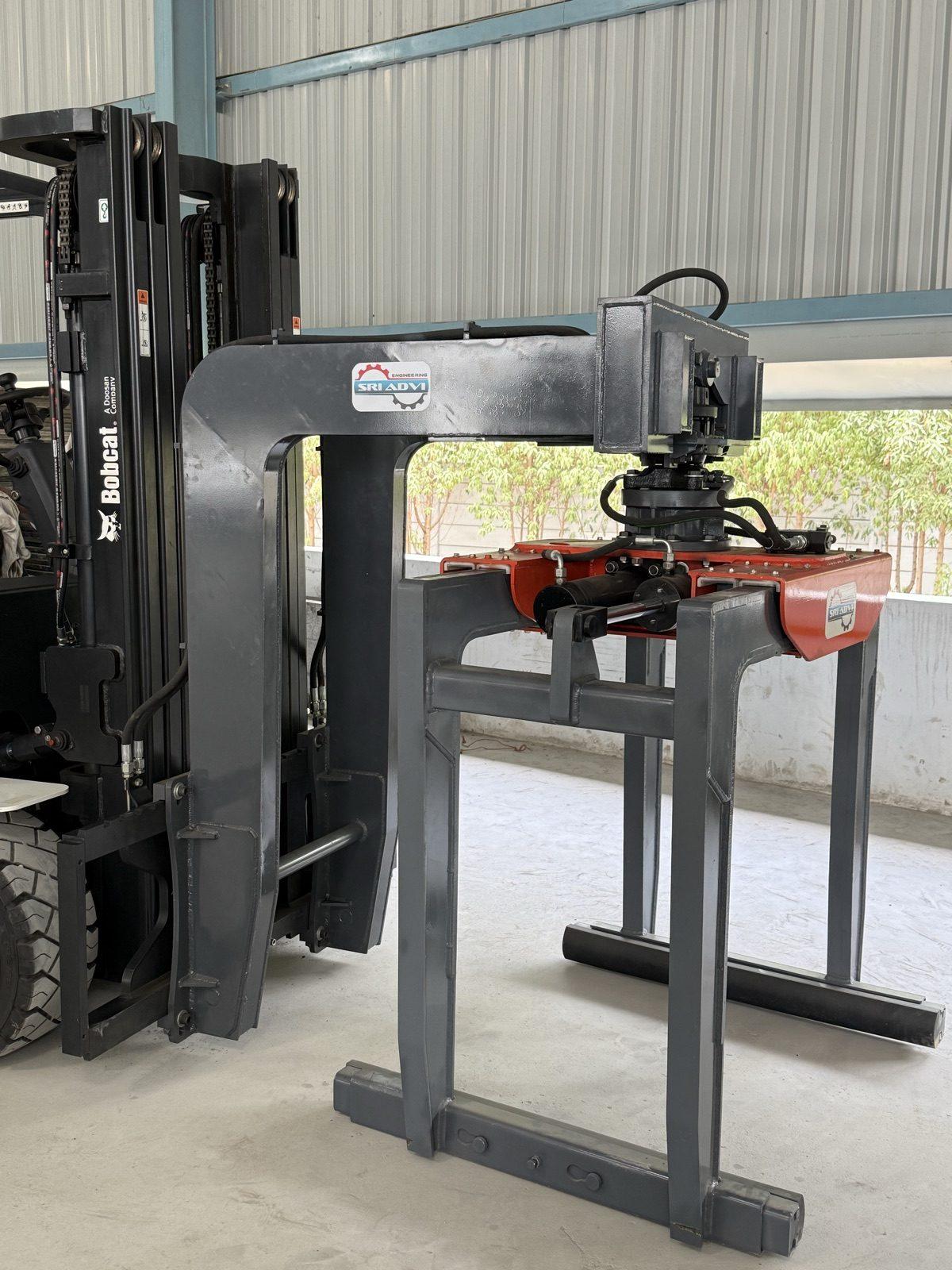

SAE 02 brick grabber, three-quarter view of the arm and frame

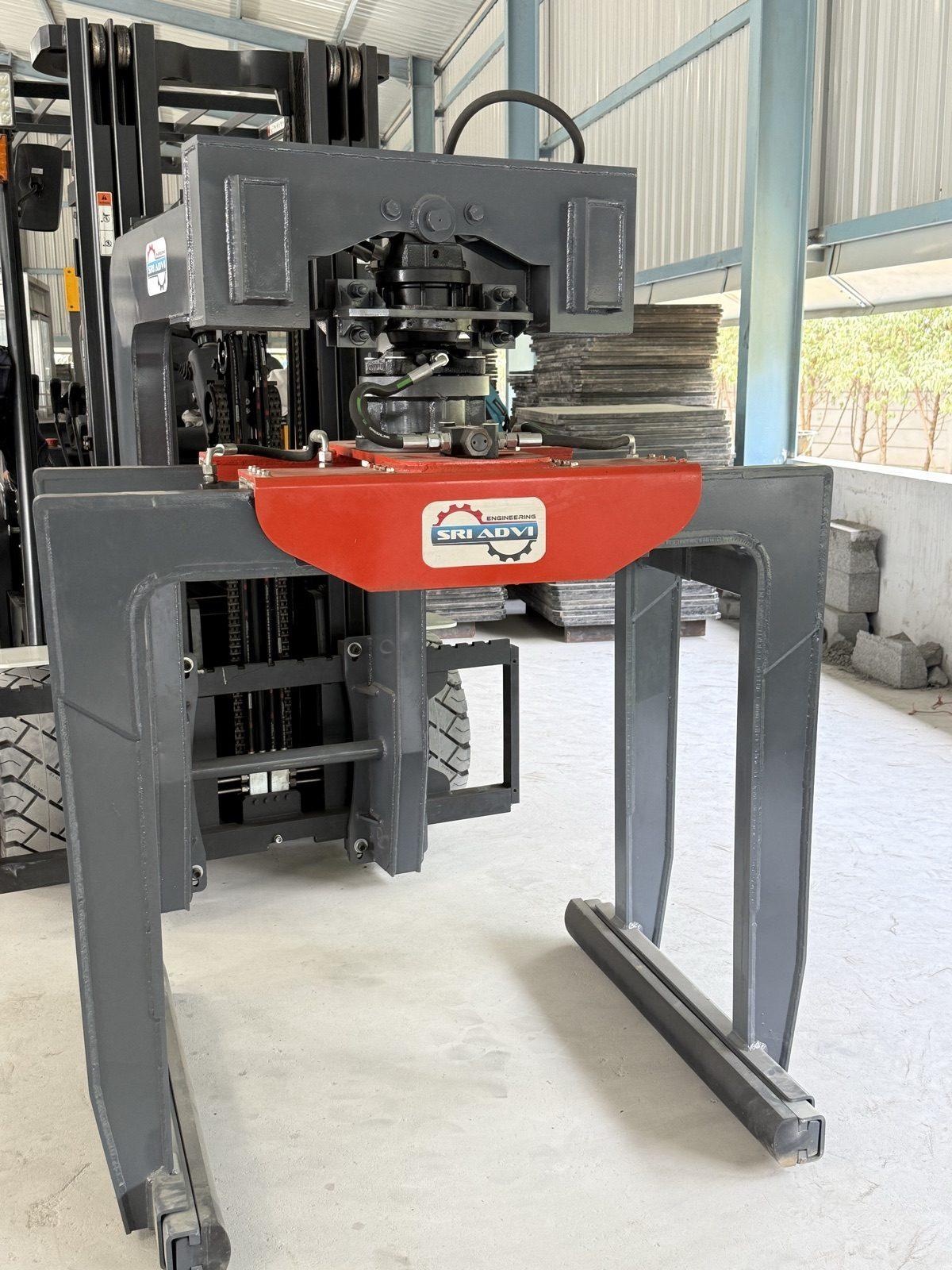

SAE 02 brick grabber arm and rotator seen from the front

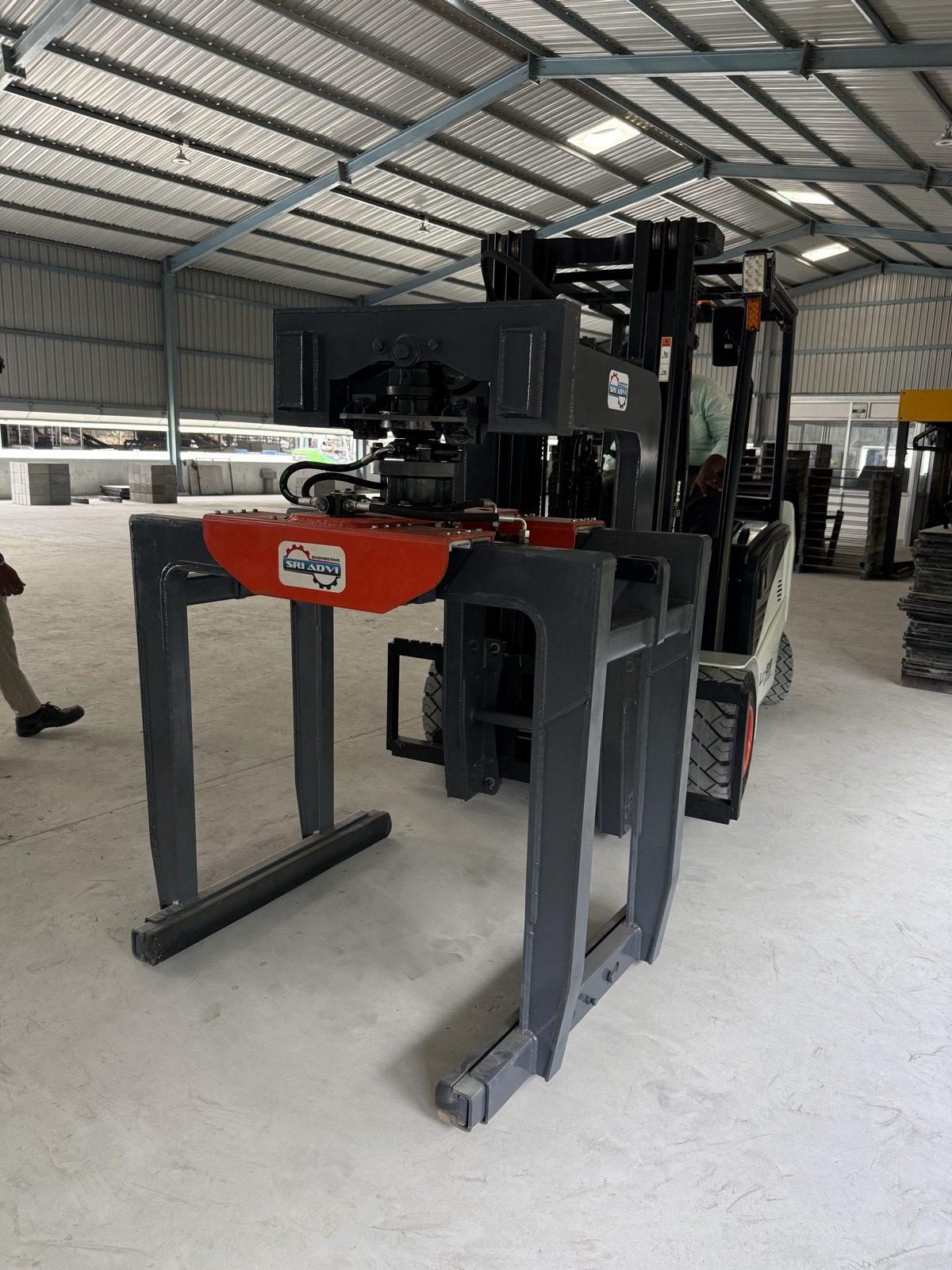

Forklift fitted with an SAE 02 brick grabber in the workshop

Available via ADSA

Brick grabber SAE 02: forklift arm, high lift

A high-lift version of the arm-mounted grabber for stacking higher and clearing rough ground. The quick-removable mounting lets the same forklift go back to other work. • Forklift arm direct mounted, quick removable mounting • Parallel-functioning arms • Lightweight structure protects the forklift mast life • All-in-one 360° rotator with robust hydraulics and smooth open/close • Fixed rotator on a bracket for precision and quicker operation • More ground clearance, better operator visibility and faster stacking cycles

Made by Sri Advi Engineering. ADSA Machines markets it in Tamil Nadu, quotes you and manages the order.

Maker: Sri Advi Engineering
Model: SAE 02
Capacity: Up to 2 t per lift
Price: ₹4,95,000 · Ex-works

Specifications

Gripping length: 400–1400 mm (15–55 in)
Load capacity: 2000 kg
Dimensions (L × W × H): 1600 × 920 × 1875 mm
Self weight: approx. 500 kg
Mounting: Forklift arm mounted, high-lift type
