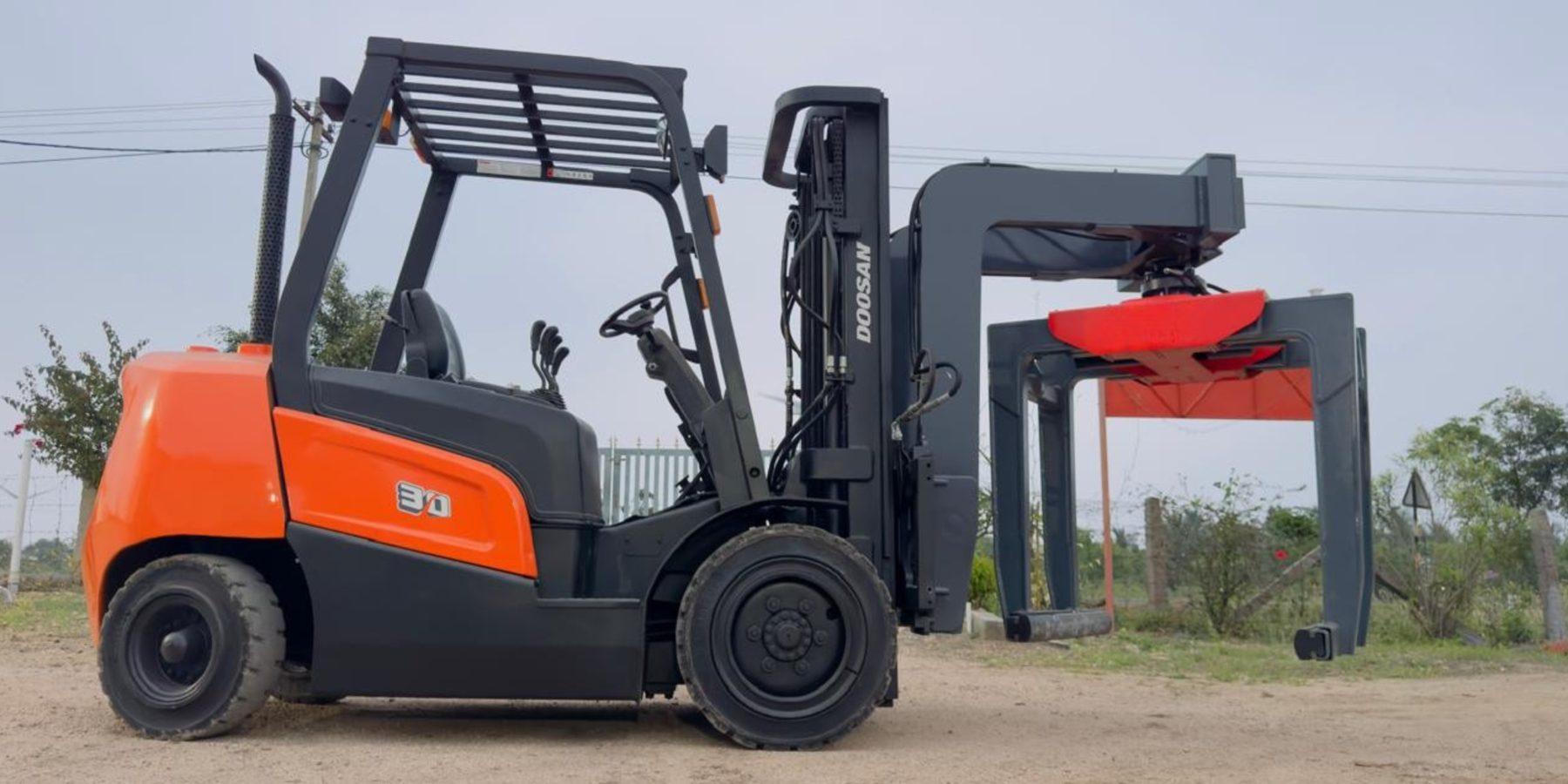

SAE 03 frame-mounted high-lift brick grabber on an orange forklift

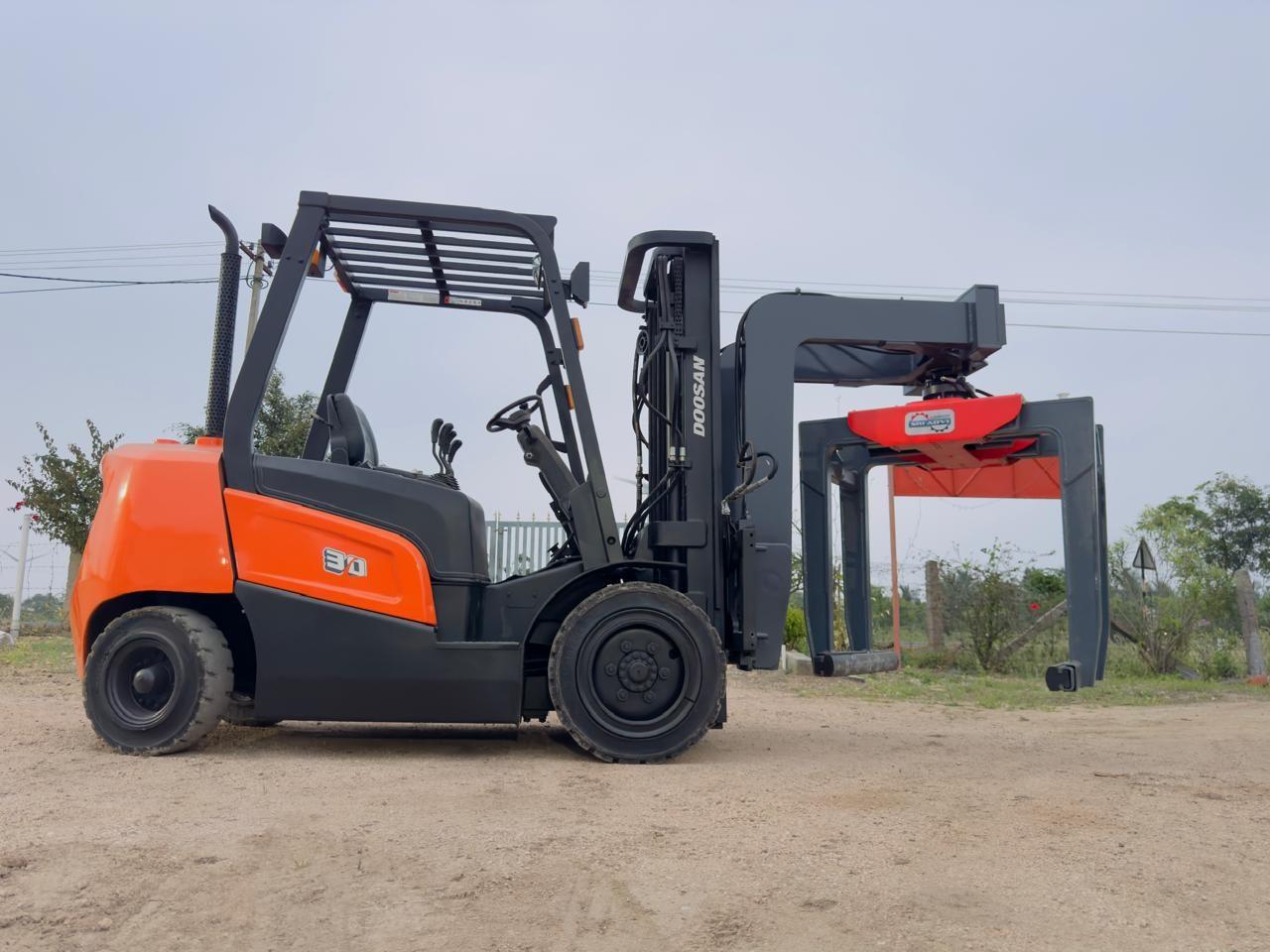

Orange forklift with the SAE 03 frame grabber at a site

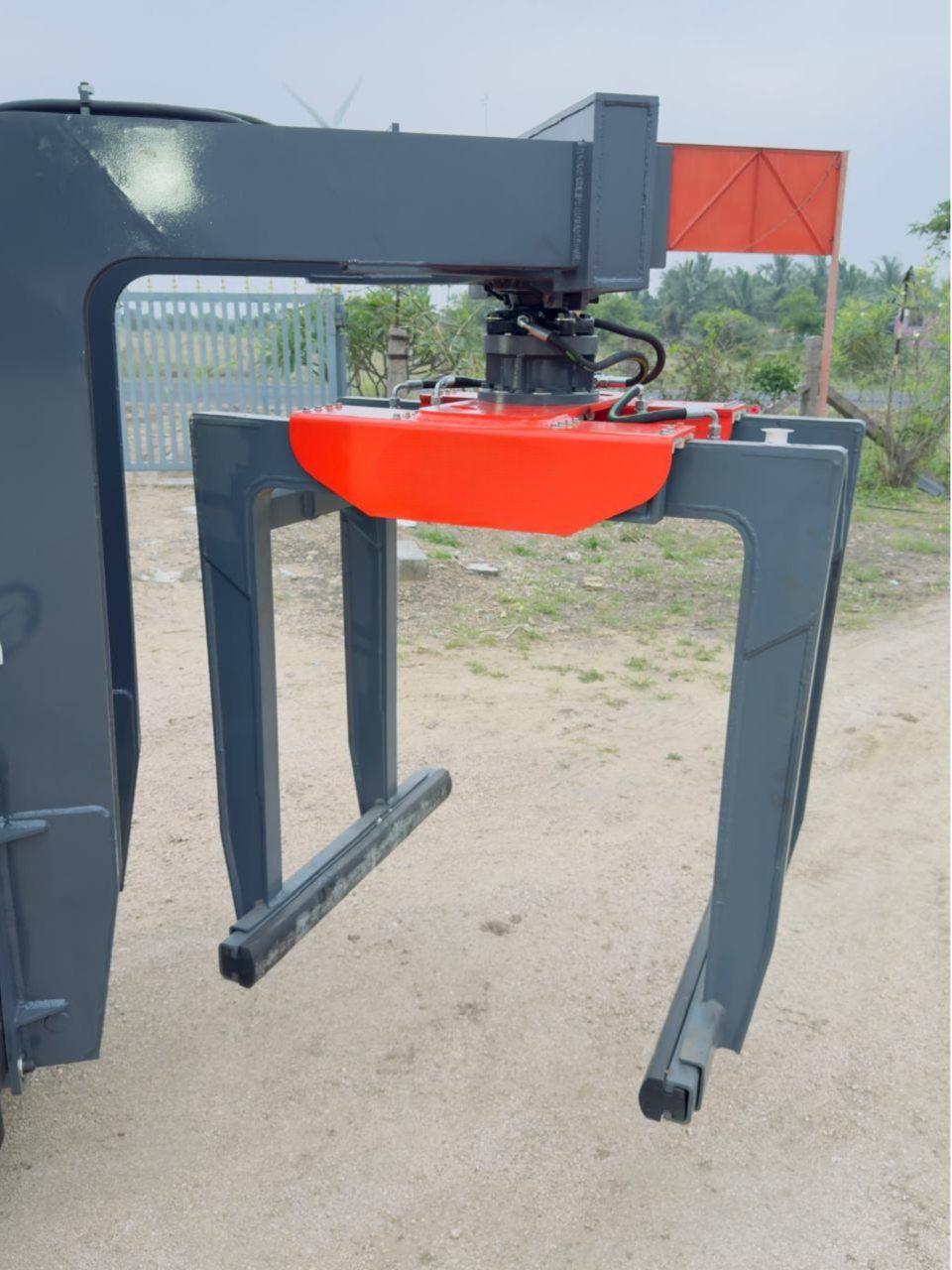

Close view of the SAE 03 frame and orange hydraulic rotator

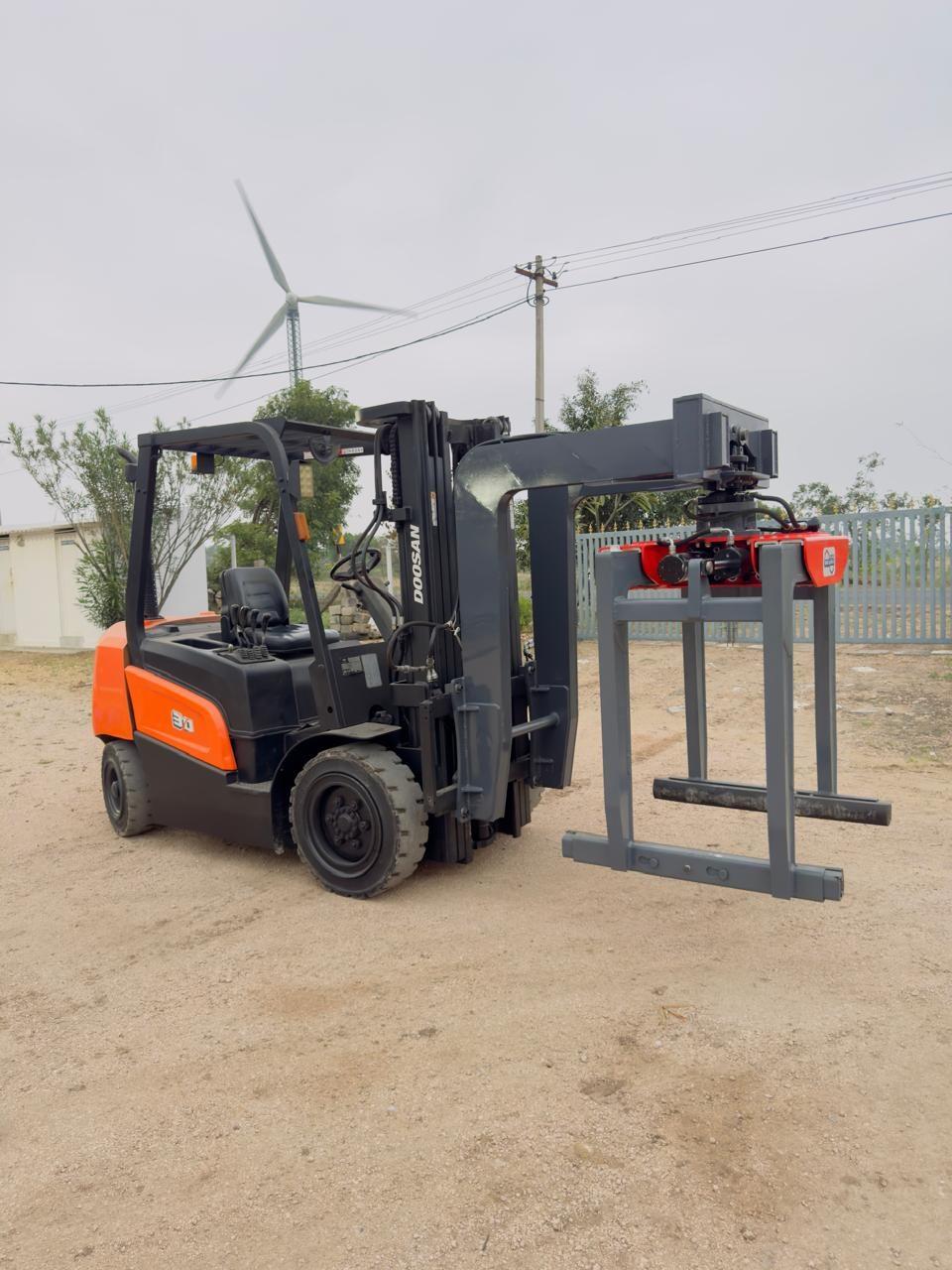

SAE 03 brick grabber on a forklift with the mast raised

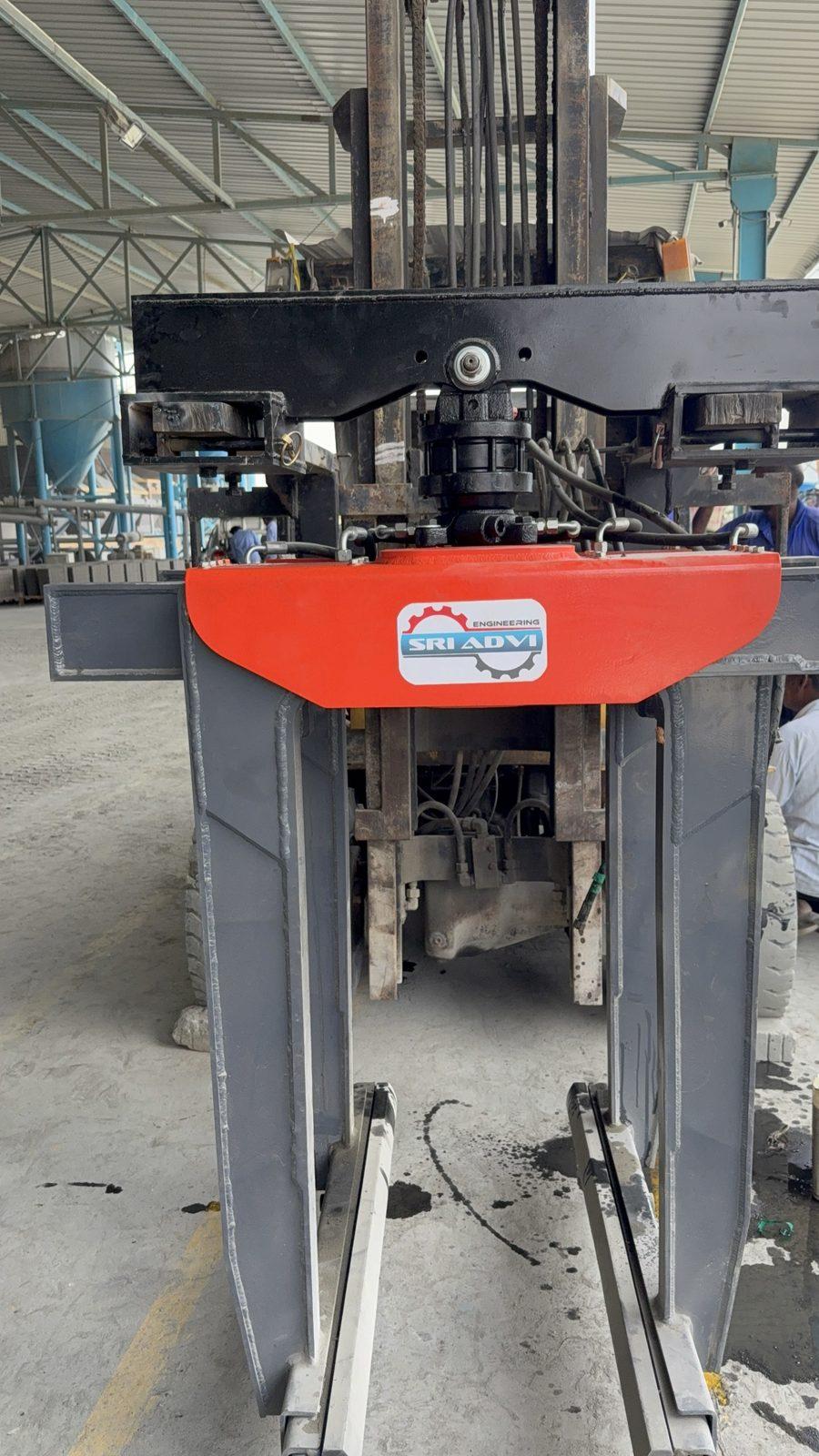

SAE 03 frame-mounted brick grabber on a forklift, front view

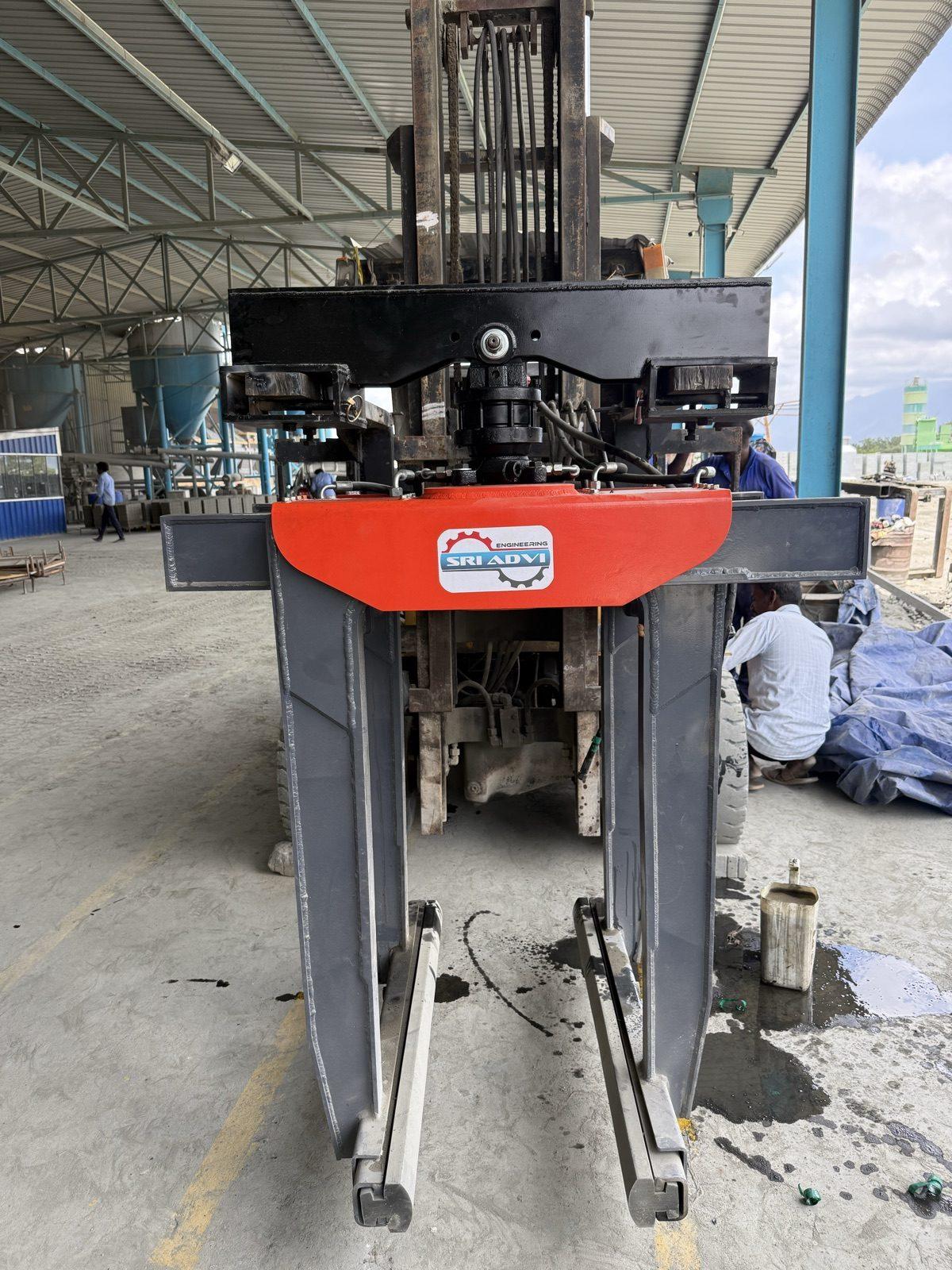

SAE 03 high-lift brick grabber with Sri Advi rotator plate

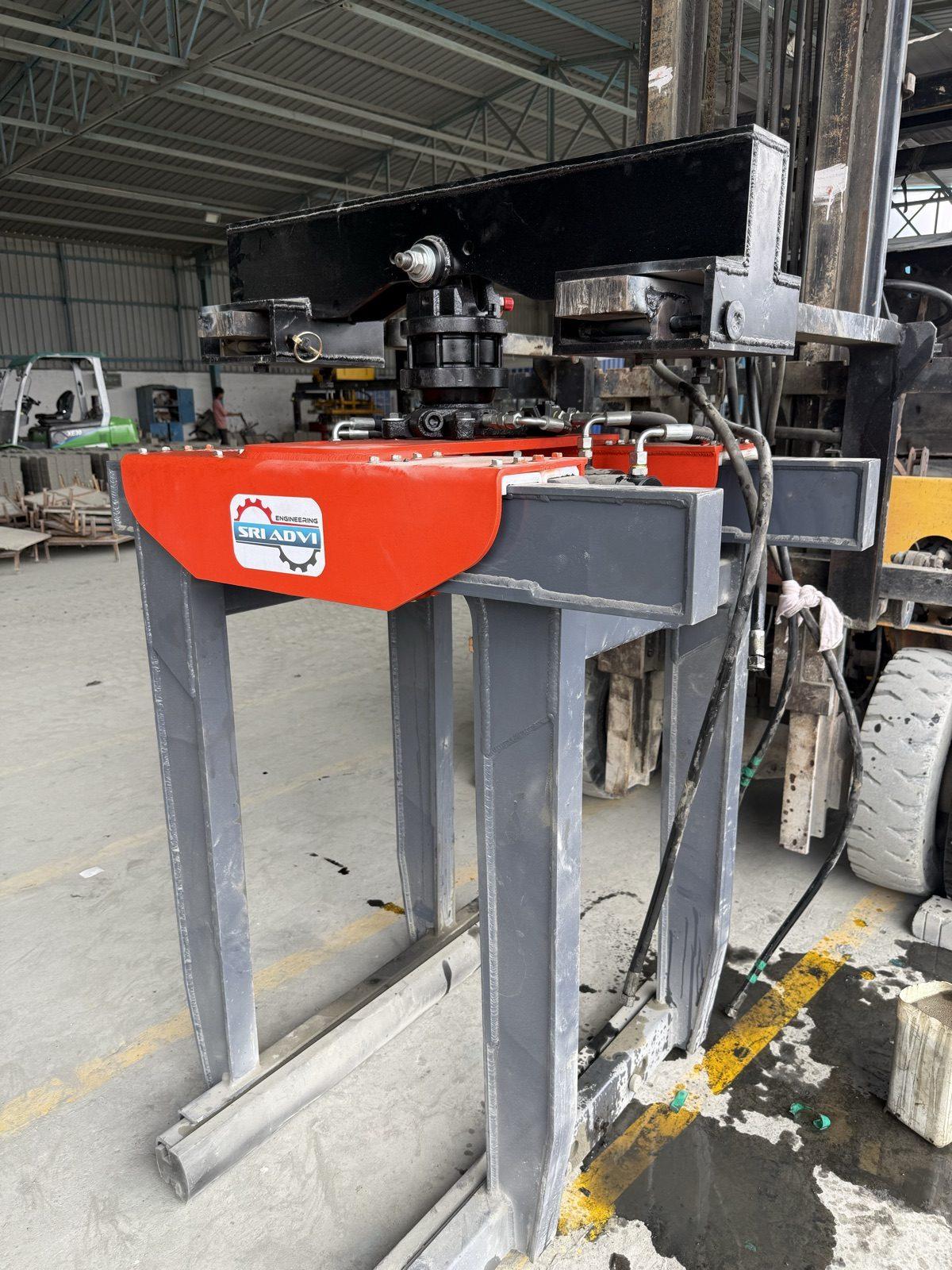

SAE 03 brick grabber frame and arms, close three-quarter view

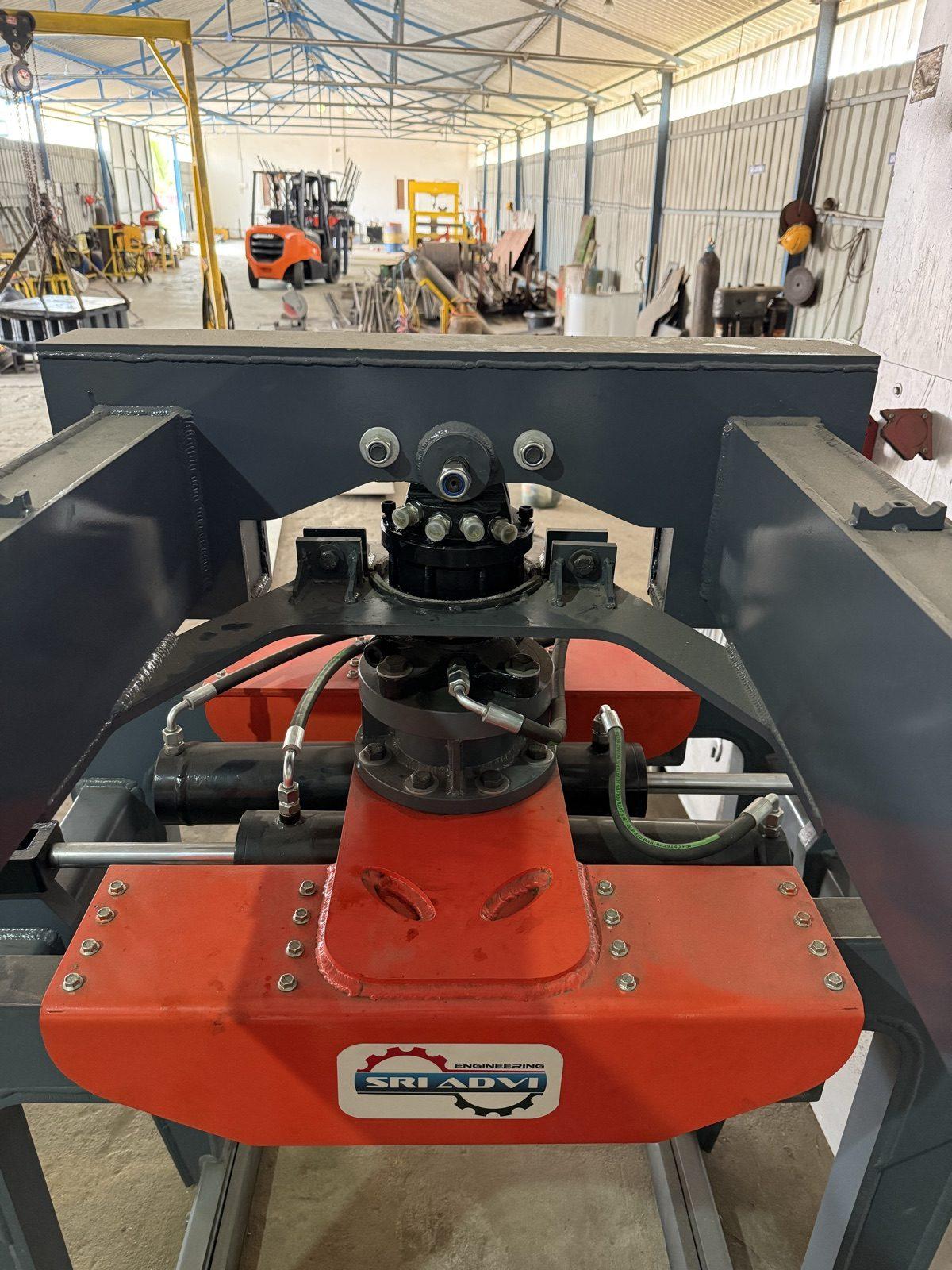

Sri Advi rotator and hydraulic hoses on the SAE 03 grabber

Available via ADSA

Brick grabber SAE 03: forklift frame, high lift

A carriage-frame mounted high-lift grabber. The frame lifts in parallel with the forklift mast, so there is no loss of working height and blocks can be stacked as high as the mast allows. • No working height loss: uses the full height of the forklift mast • Precise handling and high-level stacking, which saves yard space • Hydraulic rotator: all-in-one unit with smooth 360° rotation and open/close • More ground clearance over rough terrain and around tall containers • Better operator visibility and faster, safer cycles

Made by Sri Advi Engineering. ADSA Machines markets it in Tamil Nadu, quotes you and manages the order.

Maker: Sri Advi Engineering
Model: SAE 03
Capacity: Up to 1.2 t per lift
Price: ₹5,50,000 · Ex-works

Specifications

Gripping width: 400–1400 mm (15–55 in)
Lifting capacity: 1200 kg
Dimensions (L × W × H): 1600 × 920 × 1875 mm
Self weight: approx. 720 kg
Mounting: Forklift carriage-frame mounted, high-lift type

Download brochure (PDF)
